302S

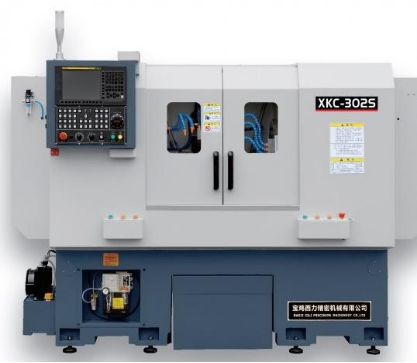

DOUBLE spindle CNC lathe
Double Spindle Structure
The spindle and sub-spindle adopt the built-in electric spindle structure, with high speed, low noise, compact structure and small inertia, which can complete the front and back processing of a part at one time,reduce these quencing link, and easily realize the requirements of automatic production.
High Accuracy Spindle
The spindle and sub-spindle are made of Japanese NSK ultra-high precision angular contact ball bearings to ensure the high rigidity and precision retention of the spindle.
Comb Type Tool Rest
The novel double-row tools holder has a small repeated tool change error, flexible tool loading, high-speed and accurate tool change, and greatly saves processing time.380mm large stroke design, processing diameter below 30, the number of row knives up to 8.
Dual-X-Axis, Dual-Z-Axis Structure
The two X-axis and Z-axis are servo driven respectively, and the interference is small ;It is especially suitable for the automated, continuous and stable processing of large quantities, short shafts and small disc parts, and is especially suitable for the continuous front and back of the bar to be processed at one time. It can complete the butt cutting of the main and auxiliary shafts, the synchronous processing of the front and back sides, and the loading of single trusses and robots.
Automatic Conveyer Device
The sub-spindle is designed with a separate material receiving device to collect workpieces without opening the door, completing continuous production and ensuring safety and efficiency.
項目ITEM | 302S | |
加工能力 Capacity | 最大回轉直徑Max swing diameter | φ300mm |
床鞍上回轉直徑Swing over cross slide | Φ150mm | |
主軸 Spindle | 回轉速度Spindle speed | 60-6000r/min |
回轉速度變換Number of spindle ranges | 無級Stepless | |
主軸通孔直徑Through hole diameter | Φ40mm | |
主軸最大夾持直徑(筒夾)Max spindle camp diameter(collet) | φ30mm | |
工件夾持Clamp type | 前推式筒夾CL-30 push type collet | |
主軸可通過棒料直徑spindle through bar diameter | Φ30mm | |
最大加工直徑Max machining diameter | φ100mm | |
最大加工長度Max machining length | 100mm | |
副主軸 Sub spindle
| 回轉速度Spindle speed | 60-6000r/min |
回轉速度變換Number of spindle ranges | 無級Stepless | |
副主軸通孔直徑Sub Through hole diameter | Φ30mm | |
副主軸最大夾持直徑(筒夾)Max Sub spindle camp diameter(collet) | φ30mm | |
工件夾持Clamp type | 前推式筒夾CL-30 push type collet | |
副主軸可通過棒料直徑Sub spindle through bar diameter | Φ30mm | |
最大加工直徑Max machining diameter | φ100mm | |
最大加工長度Max machining length | 100mm | |
快移速度 Rapid speed | X1軸快移速度X1-axis rapid traverse | 15m/min |
Z1軸快移速度Z1-axis rapid traverse | 18m/min | |
X2軸快移速度X2-axis rapid traverse | 15m/min | |
Z2軸快移速度Z2-axis rapid traverse | 18m/min | |
移動量 Travelof tool slide | X1軸移動量X1-axis travel | 380mm |
Z1軸移動量Z1-axis travel | 350mm | |
X2軸移動量X2-axistravel | 380mm | |
Z2軸移動量Z2-axis travel | 350mm | |
電機 Motor | 主軸電機(內藏)Spindle motor (Inner Tibet) | 5.5/7.5kW |
副主軸電機(內藏)Sub spindle motor(Inner Tibet) | 5.5/7.5 kW | |
X1進給電機(抱閘)X1 feed motor(brake) | 0.75 kW | |
Z1進給電機Z1 feed motor | 1.3 kW | |
X2進給電機(抱閘)X2 feed motor(brake) | 0.75 kW | |
Z2進給電機Z2 feed motor | 1.3kW | |
其它 Others | 總電氣容量Required electric power | 15 kVA |
機床尺寸(長×寬×高)Floor Space | 2520×1600×1760 | |
機床重量Mass of machine | 約3000KG About 3000KG | |
