T5/T6/T7/T8

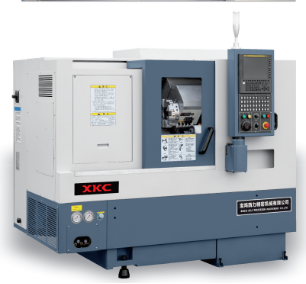

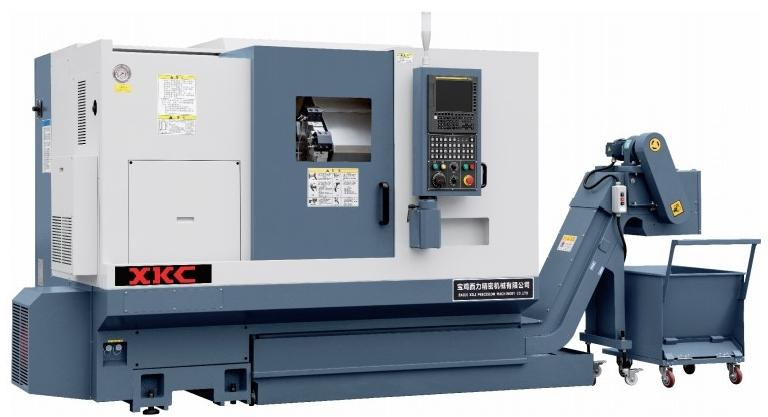

SLANT-BED PERCISION CNC LATHE
High Precision Spindle
Themachinetool adopts Japanese ultra-high precision spindle bearings, with ahigh rigidity combination design to ensure high rigidity and long- lasting accuracy of the spindle. The spindle runout is less than 3μm.
High Efficiency Machining
Max. Speed of spindle is 5500rev/min, Rapid traverse speed of the X and Y axes canreach up to24 and 28m/min. Auto parts feeder can be equipped to fulfil fast and efficient automation production.
Accurate Feeding
Each feeding axis is driven by servo motors through Japan THK precision ball screws. Machining accuracy is ensured and longtime accuracy is remained. Repeat ability is less than<±1.5μm.

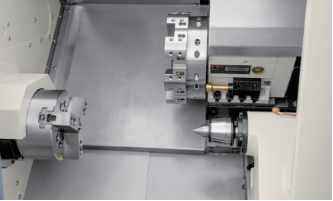

High Precision Turret
High precision turret, more tool station, tisfast, steady, accurate to change tool, and save process time.
Hydraulic Turret
Hydraulic tailstock, the guide wayof tailstock can be dismantled, flexible configuration, it greatly increae Shaft parts Machining precision and Efficiency, and save process time.
Extra Heavy Cutting
Hydraulic rotary cylinder with high speed and high accuracycombined with rigidand precise power chuckincrease greatly heavy cutting and tough metal cutting capacity.
Control System
Driven by FANUC control systems that enable the lathes with great stability. It can also be equipped with SYNTEC or other domestically produced CNC systems.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | T5 | T6 | T7 | T8 | |
加工能力 Capacity | 床身上最大的回轉直徑 Max. swing diaover bed | φ320mm | φ450mm | φ550mm | φ450mm |
刀座板上面最大的回轉直徑 Swing over cross slide | φ160mm | φ250mm | φ380mm | φ250mm | |
最大的車削直徑 Max. turning diameter | φ250mm | φ260mm | φ450mm | φ260mm | |
最大的車削長度 Max. turning length | 300mm | 420mm | 560mm | 420mm | |
主軸 Spindle | 液壓卡盤尺寸 Hydraulic chuck dimensions | 6寸 | 6寸 | 8寸 | 8寸 |
主軸頭型式(ISO) Spindle nose | A2-5 | A2-5 | A2-6 | A2-6 | |
主軸最高轉速 Max. spindle speed | 5500r/min | 5000r/min | 標配4500rpm 大孔徑4000rpm | 5000r/min | |
主軸通孔直徑 Spindle bore dia | φ57mm | φ60mm | 標配φ62mm 大孔徑φ76mm | φ62mm | |
主軸可通過棒料直徑 Through hole diameter | 筒夾(Collet chuck):φ42mm 卡盤（Chuck）：φ45mm | 卡盤(Chuck): φ45mm | 標配φ51m 大孔徑φ62mm | 卡盤(Chuck):φ51mm | |
主電機 Main motor | 5.5KW/7.5KW | 7.5/11KW | 15/18.5KW | 11/15KW | |
刀架 Turret | 驅動形式 Driving fom | 液壓/伺服刀架 Hydraulic/Servo turret | 伺服刀架 Servo turret | 伺服刀架 Servo turret | 伺服刀架 Servo turret |
刀位數 Number of stations | 8 | 12 | 12 | 12 | |
刀具尺寸(車刀/鏜孔刀) Tool size | 20×20/φ25mm | 20×20/φ32mm | 25×25/φ40mm | 20×20/φ32mm | |
尾座 Tailstock | 套筒直徑 Tailstock dia | φ70mm | φ75mm | φ90mm | φ75mm |
頂尖錐度 Center taper | MT No.4 | MT No.4 | MT No.4 （可選MT No.5） | MT No.4 | |
套筒行程 Tailstock quill travel | 80mm | 80mm | 100mm | 80mm | |
尾座體最大行程 Maximum stroke of tailstock body | 290mm | 430mm | 520mm | 430mm | |
床鞍 Carriage | 傾斜角度 DEG Slant angle | 45° | 30° | 45° | 30° |
移動距離 X/Z X/Z travel | 150/305mm | 150/460mm | 215/600mm | 150/460mm | |
進給電機功率 Feed motor power | 1.2KW/1.2KW | 1.2KW/1.2KW | 1.8KW/1.8KW | 1.8KW/1.8KW | |
快速移動速度X/Z Rapid traverse rare X/Z | 18/18m/min | 20/24m/min | 24/28m/min | 20/24m/min | |
最大進給速度Max.imun feed speed | 8m/min | 8m/min | 8m/min | 8m/min | |
滾珠絲杠直徑X/Z Ball screw diameter X/Z | φ28×6/φ32×8mm | φ32×10/φ32×12mm | φ32×10/φ40×12mm | φ32×10/φ40×12mm | |
冷卻 Cooling | 電機功率 Power | 180W | 550W | 550W | 550W |
冷卻箱容積 Cooling tank volume | 60L | 150L | 150L | 150L | |
其它 Others | 電源容量 Required electric Power | 12KVA | 15KVA | 25KVA | 21KVA |
機床尺寸(長×寬×高) Floor Space | 2040×1482×1754mm | 2820×1580×1700mm | 3190×1760×1960mm | 2820×1580×1700mm | |
機床重量 Mass of machine | 約 3200kg about 3200kg | 約3600kg about 3600kg | 約4500kg about 4500kg | 約3800kg about 3800kg | |
